E950 SERIES LENS EDGING SYSTEM

E950-GP E950-P E950-S MULTI-AXIS LENS EDGERS
State-of-the art Vertical Technology for More Accurate, Faster and More Reliable Jobs

Auto Beveling, Auto Grooving, Auto Safety Beveling, Auto Polishing
Edges all materials; CR-39, Mineral Grass, Trivex, Hi-index, A/R Coated...
Auto Calibration and Diagnostics

E950

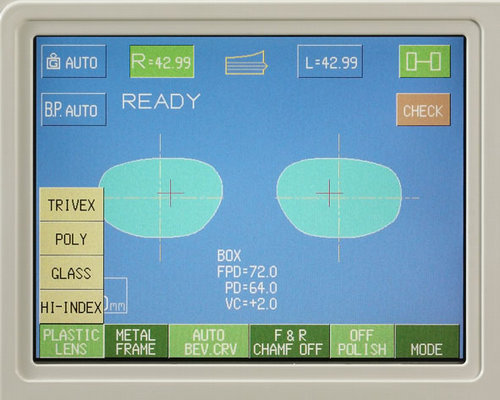

High definition large color screen with touch-panel Interface enables

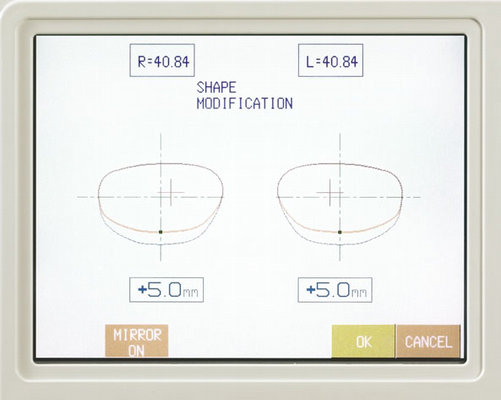

extremely quick & simple to operate evan or shape modiication

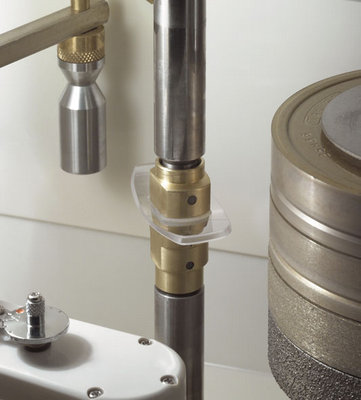

A small 18mm high lens with bevel

small 18mm high lens

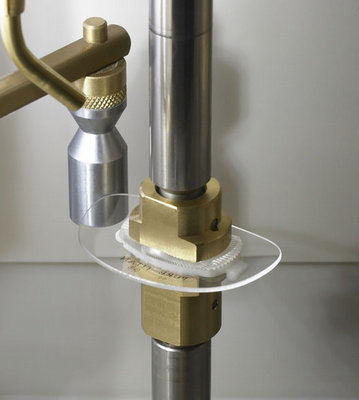

Auto Grooving & safety beveling(Front & Rear)

Grooving

Automatic grooving and safety beveling are still available even on a lens once inished flat and de-blocked.

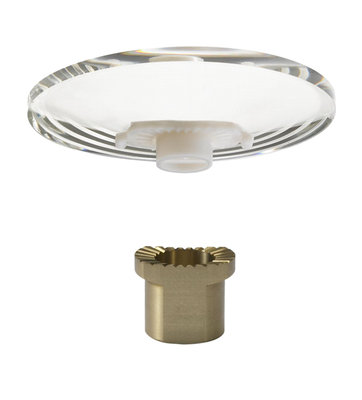

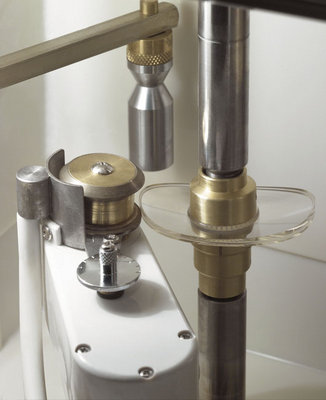

New style wide lens chucks secure a wide range of lenses

Lens chucks

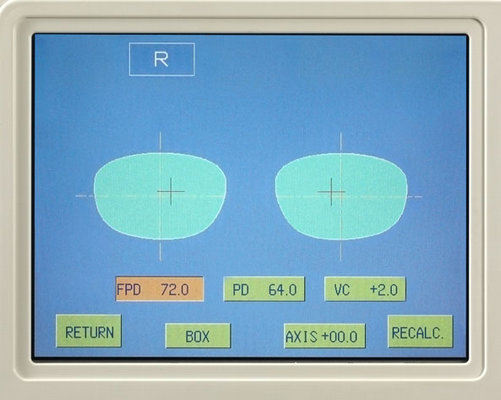

Decentering is automatically made by simply entering FPD. PD values. E950's sensor traces a sample lens and makes its shape data.

Yet, the E950 Series includes "Self Lens-Trace", which function copies a sample (demo) lens, another side of lens or a pattern for finishing a lens precisely and simply with out using any external tracer unit!

3 type available, there's one to fit your needs
BevelingRimless FinishingBevel & Rimless
Polishing		Grooving &
Safety Beveling
E-950 Type GPincludedincludedincludedincluded
E950 Type Pincludedincludedincluded
E950 Type Sincludedincluded
Various system configurations available to create the best solution for your finishing lab needs

Accessories

Standard accessories for E950 Edgers

Standard accessories

Recirculating coolant system (water tank and pump) is standard together with lens chucking materals, tools calibration gauges, etc.

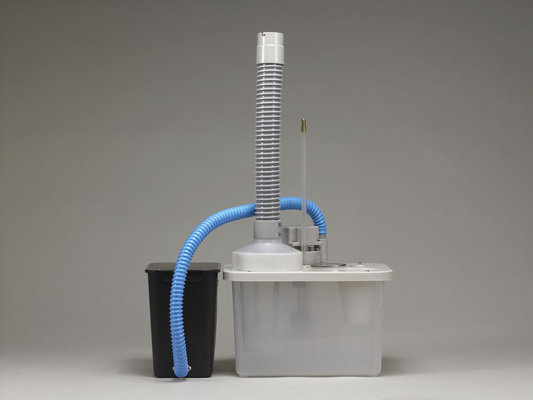

Deodorizer system (JD-3)

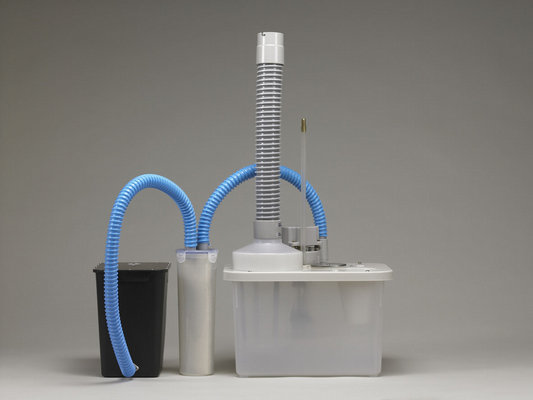

Deodorizer system (JD-3) with air-filter
(Optional accessories for E950 Edgers)

The simplest but perfectly efective deodorizer. Adding the extra air-filter will prolong the life span of the deodorant.

JD-3 JD-3 with air-filter

Direct water connection kit (Optional accessory for E950 Edgers)

City water is supplied direct to an E950 Edger under computer control.

Specifications
Types of (fully-automatic) finishing availableBeveling / Rimless finishing / Bevel Polishing (GP, P) / Rimless polishing (GP, P) / Front and rear safety bevel (GP) / Front, center and rear-face curve grooving (GP)
Bevel programsFully-automatic (computer controlled) beveling / Controlled beveling include ront-face curve, optional curve and position
Diameter of lens acceptable[Min] 18mm high with bevel, 16mm high for rimless / [Max] 100mm
Dimentions370(W)x370(D)x540(H)mm
Weight37kg
Power requirement100-120V / 60Hz or 200-240V / 50Hz AC, 600W
