E920 MULTI-AXIS LENS EDGERS
Our full featured price value leader. The most durable, dependable cut and edge machine ever made. All the same advanced engendering and durability as our most advanced E1000 Series Edgers.

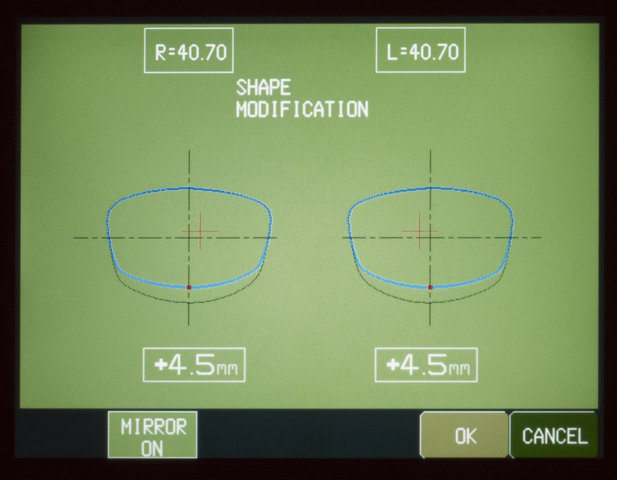

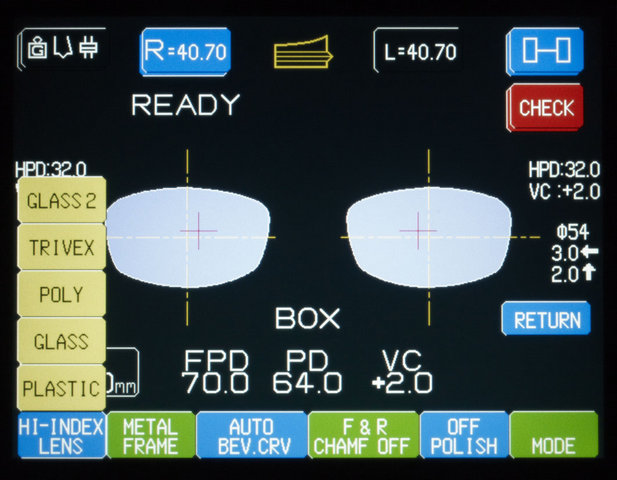

High definition large color screen with touch-panel interface
enables extremely quick & simple to operate.
Unique high accuracy 3D sensor system measures shape, thickness and curve of the lens-edge for the optimum bevel placement, yet for the "Self Lens-Trace".
Enhanced durability, easy access and lens bench space
for the finest and sharp bevel and rimless finish
920 SYSTEM / E920 Lens Edger with 3D Dual Eyewire Tracer
The 920 SYSTEM is the same basic system as the E1000 Type S Edger + FD-80 Tracer but to reduce cost the following significant items are not included:
- Barcode reader interface

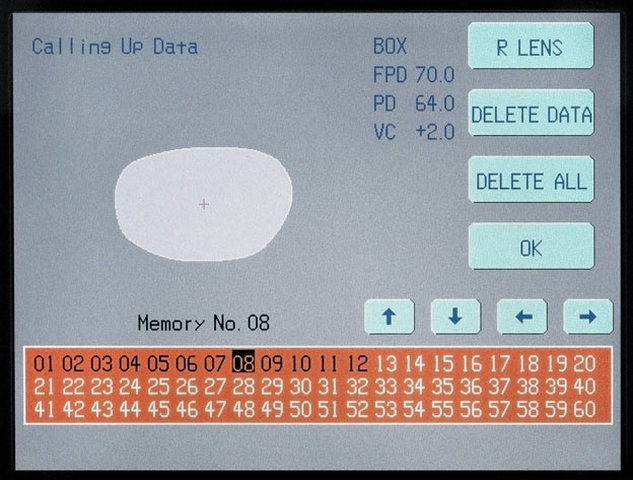

- 200 job memory in the tracer (but E920 Edger still has 60 job memory itself)
- Data communication with PC and connection with our SD-1 Signal Distributor
- The E920 Lens Edger is not provided with the "Advanced re-edge and finish" function for unblocked lenses.
The Tracer included in this 920 SYSTEM is not the FD-80 but exclusive for this system and can be interfaced with the E920 Lens Edger only. However this Tracer is upgradable later to a full FD-80 Tracer at extra charge, which upgrade will enable the system to utilize the above-itemized functions, (1), (2) and (3) except (4).
Accessories for E920 Edgers
Recirculating coolant system (water tank and pump) is standard together with lens chucking materals, tools calibration gauges, etc.
Lens Marker / Blocker
Lens Marker / Blocker
Deodorizer system (JD-3) with air-filter
The simplest but perfectly efective deodorizer. Adding the extra air-filter will prolong the life span of the deodorant.
Memory modules are available to keep your edger' software completely up to data.
With this automatic switching device, up to 5 units of E1000/E920 Edgers and/or LS-82 Blockers can be connected to one FD-80 Tracer with barcode reader interface.
Stores the FD-80 Tracer and LS-82 Blocker vertically.
This simple knockdown rack provides increased productivity and saves a space of your workshop counter.
City water is supplied direct to an E1000/E920 Edger under computer control.
|E920 Lens Edger|
|Diameter of lens acceptable||[Min]18mm high with bevel, 16mm high rimless finish (with optional chucks) / [Max] 100mm|
|Types of (fully-automatic) finishing available||Standard beveling / Rimless finishing|
|Bevel programs||Fully-automatic (computer controlled) beveling / Controlled beveling including front-face curve, optional curve and position|
|Dimensions / Weight||370(W)x370(D)x553(H)mm / 39kg|
|Power requirement||100-120V / 60Hz or 200-240V / 50Hz AC, 600W|
|Tracer for 920 SYSTEM|
|Operation modes||•Automatic both eyes / Single eye measurement •Frame / Lens / Pattern tracing •Variable tracing speeds|
|Range of measurement||Frame:18mm (in height) - 70mmφ Lens:15mm (in height) - 70mmφ|
|Time of tracing||•38 seconds for measuring both eyes •22 seconds for lens or pattern|
|Data ports||2)RS232C 1)RS232C with DC5V (option)|
|Dimensions / Weight||280(W) x 310(D) x 180(H) mm / 7 kg|
|Power requirement||24V DC, 20W (100-240 AC / 24V DC adapter attached)|
